Mitsubishi Elevator 003 Series – Fault Code Check & Magnetic Learning Guide 🔧

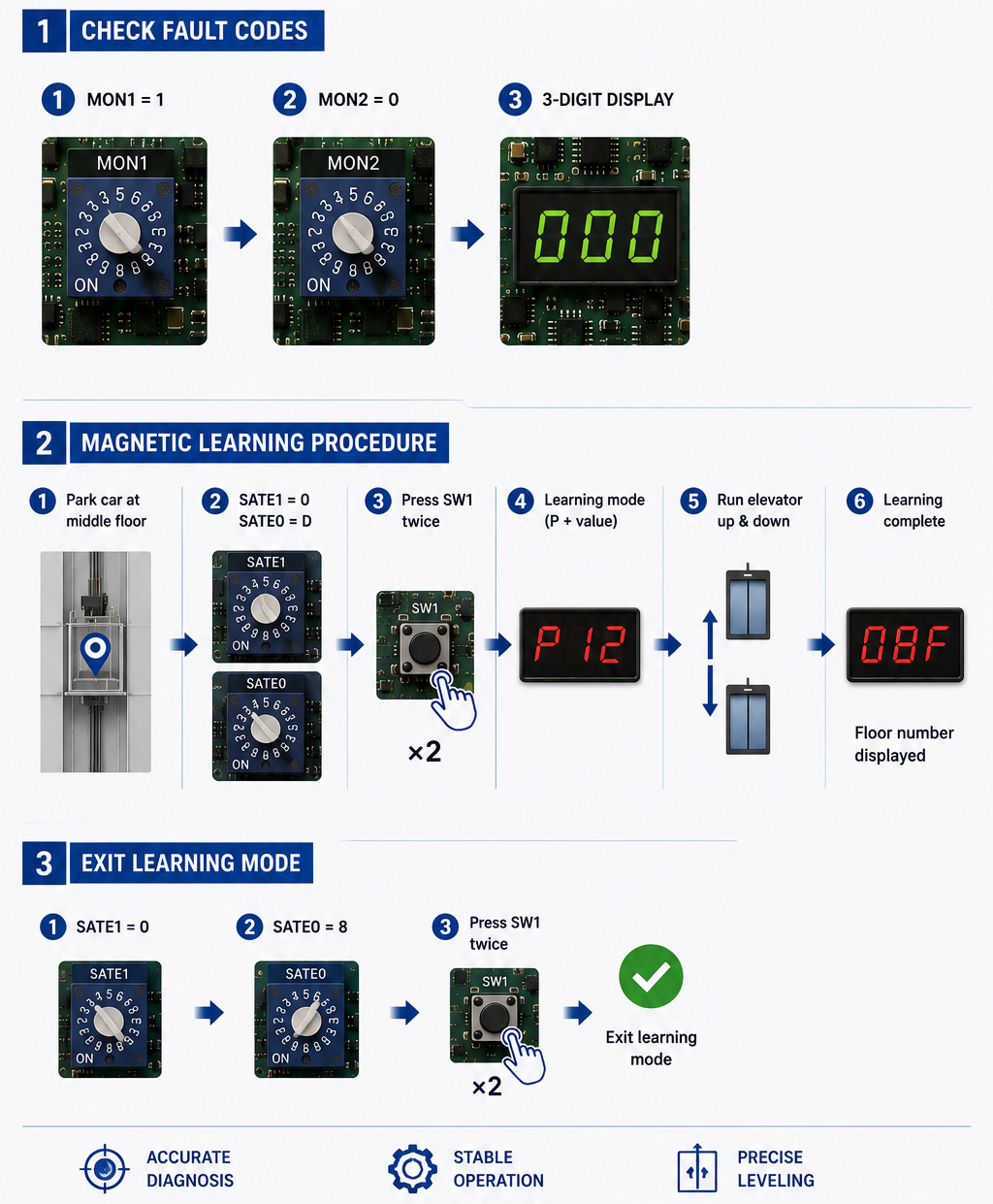

🔍 How to Check Fault Codes

1️⃣ Set MON1 = 1
2️⃣ Set MON2 = 0
3️⃣ The 3-digit display will show the fault code

• “000” = Normal operation
• Any other code = Fault detected (refer to code table for troubleshooting)

⚙️ Magnetic Learning Procedure

1️⃣ Park the car at the middle floor of the shaft
2️⃣ Set SATE1 = 0, SATE0 = D
3️⃣ Press SW1 twice → enter learning mode (display shows “P + value”)
4️⃣ Run the elevator in inspection mode (up/down)
5️⃣ Learning completes automatically → floor number displayed

👉 To exit:

• Set SATE1 = 0, SATE0 = 8
• Press SW1 twice

⚠️ Accurate setup ensures stable operation and precise leveling.
