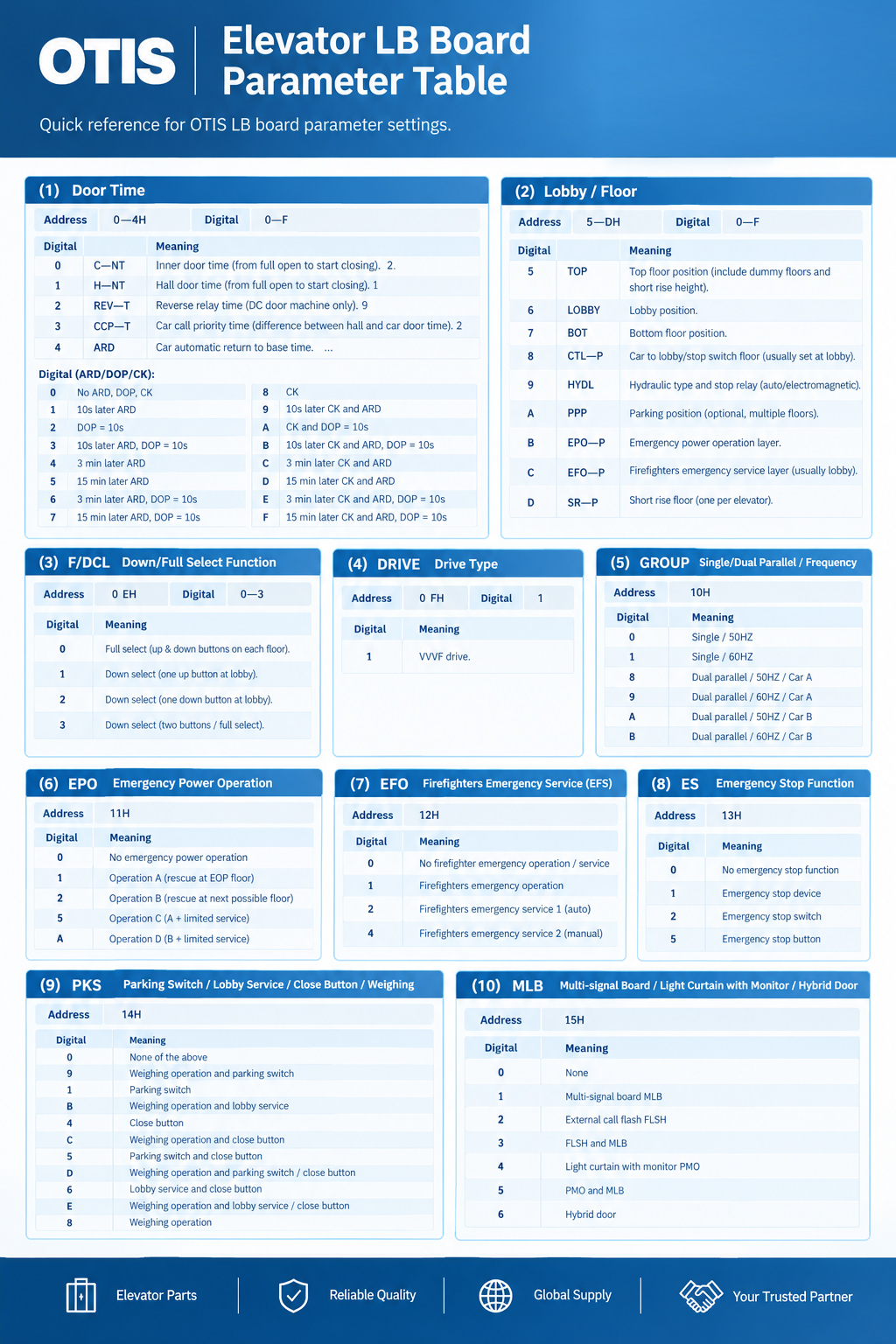

Quick reference for common LB board settings.
Door Time (0–4H)
C-NT / H-NT: Door open → close delay
REV-T: Door reverse time (DC only)
CCP-T: Car call priority time
ARD: Auto return
ARD / DOP / CK:
0 = None
1 = ARD (10s)
2 = DOP (10s)
4 = ARD (3 min)
5 = ARD (15 min)
Floor Settings (5–DH)
TOP: Top floor
LOBBY: Lobby
BOT: Bottom floor
CTL-P: Parking floor
EPO-P: Emergency power floor
EFO-P: Fire service floor
Control Mode (0EH)
0: Full collective
1–3: Down collective modes
Drive (0FH)
1: VVVF
Group (10H)
0/1: Single (50/60Hz)
8–B: Dual (Car A / B)
Emergency Functions
EPO (11H): Emergency power
EFO (12H): Fire service
ES (13H): Emergency stop
Other Functions
PKS (14H): Parking / Close / Weighing
MLB (15H): Signal board / Light curtain
Summary
LB board settings mainly involve door timing, floor configuration, control mode, and emergency functions.
